THE PROBLEM WITH LUMEN OUTPUT



When comparing the performance of LED downlights, lumen output alone doesn’t tell the whole story.  On  a recent hospitality project, the contractor wanted to substitute  another light fixture that met the minimum lumen output requirement.  It's a familiar story, but an incomplete one. In this case, however, the  lighting designer showed that the would-be substitution did not, in  this application, provide the uniformity of the original, specified  fixture. Demonstrating this to the electrical engineer and architect  confirmed that the original fixture should stay on the job.


Fixture  manufacturers are continuing to improve their products by upgrading  luminaire light engines resulting in higher lumen outputs. This is  especially true with manufacturers of LED downlights. These improvements  allow fixture manufacturers to offer smaller aperture downlights with  lumen outputs that previously were only available in larger apertures.  Most of the major manufacturers of downlights now offer a 6-inch  downlight with 3000 lumen output or higher.


A  common misconception among many lighting specifiers is that an equal  lumen output from a substitute manufacturer of equal quality is an  acceptable alternative. This is not always the case.



In  the hospitality application, Luminaire A was specified as a 6-inch  downlight utilizing a 2500 lumen light engine with delivered lumens of  2264. The application was a 20' x 40' room with a 9ft ceiling height and  a 50 footcandle design criteria. However, Fixture B was submitted as a  substitute. It utilizes a 3000-lumen light engine with delivered lumens  of 2564. Comparing only lumen outputs, this might appear to be an  acceptable substitution, but a closer look at the comparative  performance tells a different story.

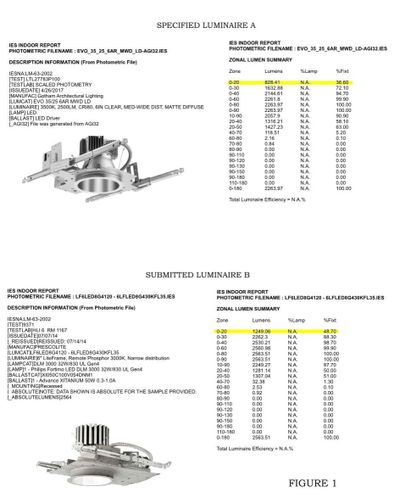

The  Zonal Lumen Summaries of the two photometric reports shown in Figure 1,  to the right,  highlight the 0-20-degree zone of each luminaire.  Luminaire B distributes 48.7% of the total lumens in to the 0-20-degree  zone. For higher ceiling heights, this would be desirable. However, for  this application with a 9-foot ceiling, it was not an acceptable  substitute.

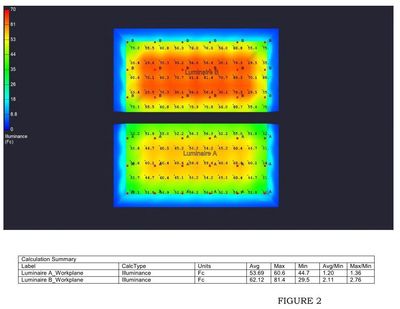

The  calculation summary in Figure 2, to the right, reveals a maximum  footcandle level of 81.4 FC for Luminaire B on the work plane compared  to 60.6 FC for Luminaire A. This is due to the higher concentration of  lumens in the 0-20-degree zone of Luminaire B. The Pseudo Color  Rendering below also illustrates the better overall uniformity Luminaire  A provides. The Average-to-Minimum Ratio and Maximum-to-Minimum Ratio  also confirms that Luminaire A is the better solution.


In  summary, both fixtures meet the design criteria of 50 footcandles  maintained on the work plane. However, horizontal footcandle levels  should never be the only measure of performance. Uniformity should  always be included in the performance specification and photometric data  should be closely examined. The Zonal Lumen Summary gave clues that  further comparison was needed but the Calculation Summary and Pseudo  Color Rendering revealed the facts.



Danny Streit, IALD, IES, LC is Design Principal of DHS Lighting Design in Nashville, TN, and has over 20 years’ experience in architectural lighting design and lighting control systems. He has successfully completed over 1300 designs in his career and has a history of providing innovative, functional, and sustainable lighting solutions for any design application. danny.streit@dhslightingdesign.com
